Charger-Level Dashboard
The Charger Level Dashboard provides a detailed view of how each individual charger performs over time.
It focuses on session activity, socket behavior, reliability, utilization, and short-term performance metrics.
All data below represents the past 7 days, unless otherwise specified.

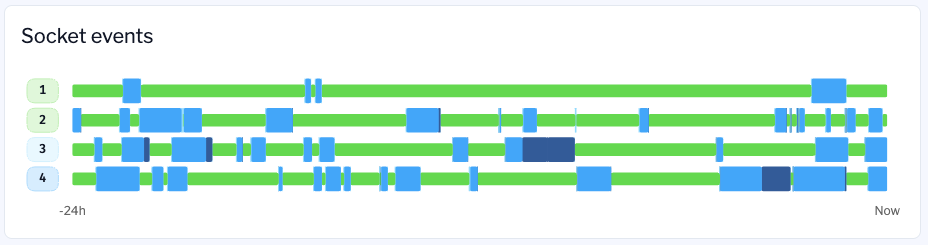

Socket Events (Last 24 Hours)
What it measures
Shows socket-level activity timelines for the charger over the past 24 hours. Each row represents a socket; color-coded bars indicate operational states.
Color | State | Meaning |
|---|---|---|
đźź© Green | Available | Socket is ready and waiting for a new session. |
🟦 Blue | Charging | Active charging session in progress. |
How to interpret
Dense blue bars show high charger activity and frequent usage.
Long green lines mean extended idle or ready periods.
Gaps between segments may suggest communication downtime or low usage windows.
Ongoing Sessions (Live)
What it measures
Displays all active charging sessions currently in progress, including their duration and energy delivered.
Metric | Description |
|---|---|
Active Sessions | Number of ongoing charging sessions. |
Energy Delivered | Total kWh supplied so far during the session(s). |
Session Duration | Time elapsed since session start. |
How to interpret
This data updates in real time.
A high energy value and long duration mean active, sustained sessions.
Short durations or low energy indicate short top-ups or user interruptions.

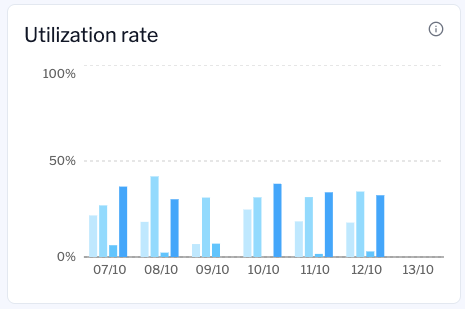

Utilization Rate – Last 7 Days
What it measures
Percentage of time the charger’s sockets were in use versus total available time, over the past seven days.
Day | Utilization % |
|---|---|
Example 07/10 | 42% |
Example 08/10 | 55% |
How to interpret
Higher values → Charger is well-utilized and in frequent demand.
Lower values → May indicate low usage, maintenance downtime, or reduced demand.
Daily tracking helps identify trends or underperforming days.

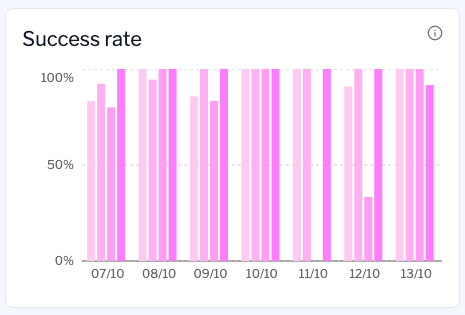

Success Rate – Last 7 Days
What it measures
Proportion of successful charging session starts compared to total charging attempts.
Day | Success Rate % |
|---|---|
Example 07/10 | 97% |
Example 08/10 | 100% |
How to interpret
100% → All attempts successfully initiated — charger performing optimally.
Below 95% → Indicates connection errors, user cancellations, or hardware instability.
Consistent success rates above 95% signify excellent reliability.
Latest Errors (Last 7 Days)
What it measures
Displays the most recent charger errors reported in the last seven days.
How to interpret
If no entries appear, the charger has operated without any recorded faults — ideal stability.
If error events are listed, frequent or repeating codes help identify underlying technical issues.

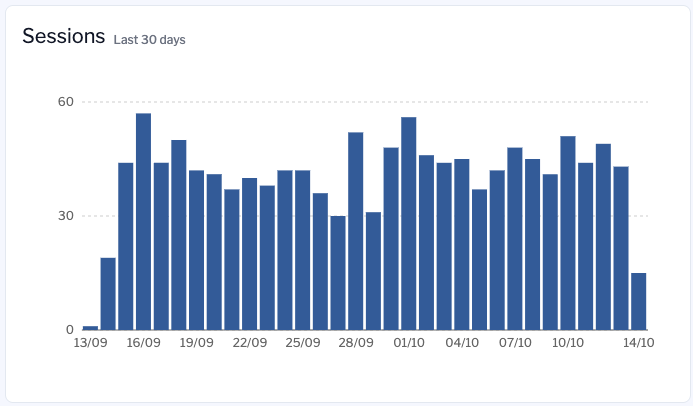

Sessions – Last 30 Days
What it measures
Number of sessions completed per day in the past 30 days.
Date Range | Sessions per Day |
|---|---|
13/09 – 14/10 | Varies (visualized as bar chart) |
How to interpret
Stable or growing trends = consistent use and reliability.
Noticeable drops = potential connectivity or usage issues.
This metric reflects how often the charger is utilized over time.

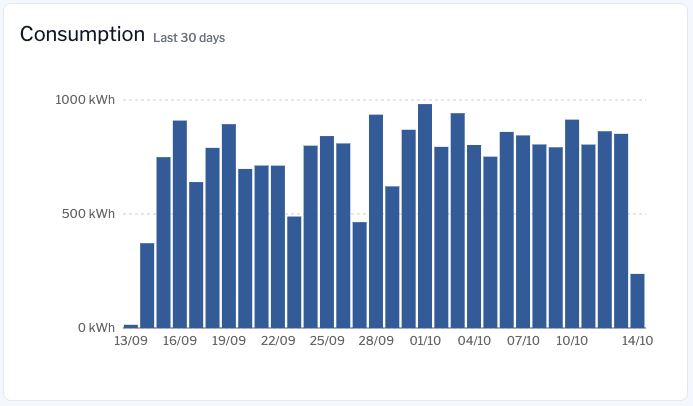

Energy Consumption – Last 30 Days
What it measures
Total daily energy (kWh) delivered by this charger over the last month.
Date Range | Energy Delivered (kWh) |
|---|---|
13/09 – 14/10 | Variable daily total (visualized as bar chart) |
How to interpret
High daily totals = sustained activity and healthy demand.
Drops or irregularities = possible service interruptions or site-level factors.
Helps operators plan capacity and validate charger performance.

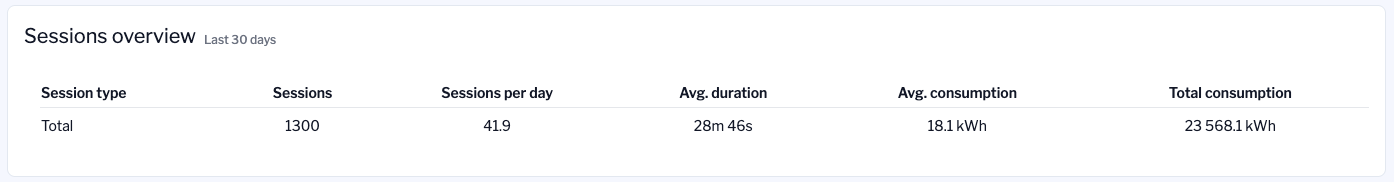

Sessions Overview – Last 30 Days
What it measures
Summarized performance metrics for the charger over the last 30 days.
Metric | Value | Meaning |
|---|---|---|
Total Sessions | Example: 1,300 | Total completed sessions. |
Sessions per Day | Example: 41.9 | Average number of sessions per day. |
Average Duration | Example: 28m 46s | Typical charging session length. |
Average Consumption | Example: 18.1 kWh | Average energy delivered per session. |
Total Consumption | Example: 23,568.1 kWh | Combined energy output for all sessions. |
How to interpret
This table consolidates session and consumption performance.
Short duration + high consumption = fast-charging behavior.
Long duration + low consumption = slow or partial sessions.
Helps assess charger efficiency and user behavior patterns.
Summary
The Charger Level Dashboard provides a focused operational view of individual charger health and performance.
It enables operators to:
Monitor socket-level availability and session activity
Track charger utilization and success rates
Detect errors or downtime early
Evaluate energy delivery and charging behavior
By combining short-term (7-day) performance indicators with 30-day historical trends, operators can ensure reliability and maximize charger uptime.
